| Product: | 1.5 Inch SPI OLED | Resolution: | 128x128 Pixels |
| Structure: | COG + PCB | Interface: | I2C Interface |
| Touch Screen: | Customizable | Viewing Direction: | All Viewing Angles |
| Outline Dim.: | 34.3 × 45.5 × 3.8 (mm) | Connection: | Header Pins |
| Pin Number: | 7 Pins | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 128x128 Dot Matrix OLED Display, 7-Pin Module OLED Display | ||

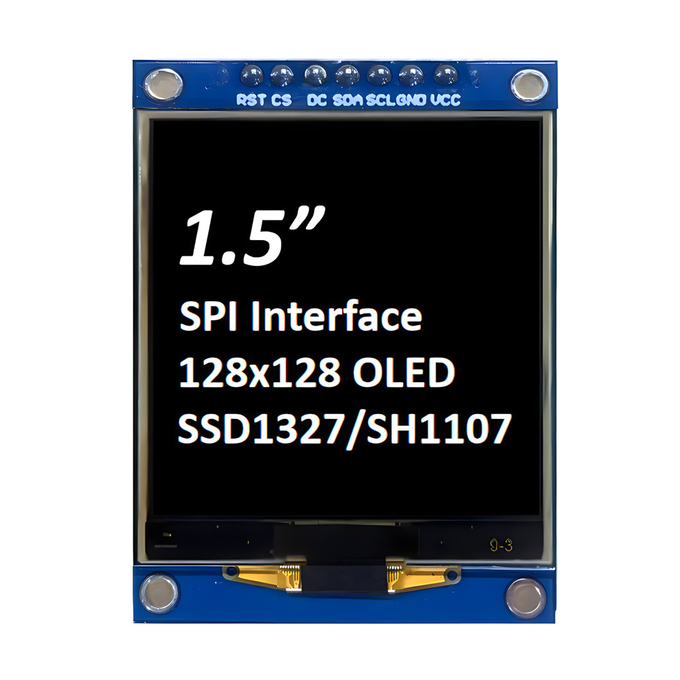

关于此商品 SFOM150YZ7-128128WB-01 1.5 英寸 OLED 显示屏 SPI 接口
1.5英寸SPI接口OLED显示屏，采用128x128点阵，配备SSD1327/SH1107G驱动IC，提供白光/蓝光选择。它是一个7针模块产品。 OLED（有机发光二极管）技术提供高对比度和宽视角的显示效果，同时还具有快速响应时间和低功耗的特性。以下是该产品的详细介绍：
128x128像素，提供清晰的图像和文本显示。
SD1327/SH1107G，这些驱动IC支持多种显示功能和接口选项。
SPI（串行外设接口）接口，支持高速数据传输，适合需要快速更新显示内容的应用。
提供白光和蓝光选择，让用户可以根据自己的应用场景选择最适合的颜色。
OLED屏幕会发光，具有高亮度的特性，适合在明亮的环境下使用。
逻辑电源电压范围为1.65V-3.5V，DC-DC电源电压为2.4V-3.5V，OLED工作电源电压为7.0V-16.5V。低功耗设计，睡眠模式下功耗小于5μA。
适用于便携式设备、智能家居、可穿戴设备、医疗设备、工业控制面板等各种应用。这款 1.5 英寸 OLED 模组设计符合工业标准，能够在较宽的温度范围内稳定运行。
支持行和列重新映射、垂直滚动、片上振荡器、可编程内部电荷泵电路输出、单色无源 OLED 面板上的 256 级对比度控制。
SAEF Technology 的这款 1.5 英寸 OLED 显示模块具有高分辨率、高亮度和低功耗的特性，是需要小型化显示解决方案的应用的理想选择。
物理数据
| NO. | Items | Specification | Unit |
| 1 | Diagonal Size | 1.5 | Inch |
| 2 | Resolution | 128 * 128 | Dots |
| 3 | Active Area | 26.86(W) * 26.86(H) | mm2 |
| 4 | Outline Dimension | 34.00(W) * 49.30(H) * 2.66(T) | mm2 |
| 5 | Pixel Pitch | 0.210(W) * 0.210(H) | mm2 |
| 6 | Pixel Size | 0.185(W) * 0.185 (H) | mm2 |
| 7 | Driver IC | SH1107G / SSD1327 | - |
| 8 | Display Color | White / Blue optional | - |
| 9 | Gray Scale | 1 | Bit |
| 10 | Interface | SPI | - |
| 11 | IC Package Type IC | COG | - |
| 12 | Module Connecting Type | ZIF | - |
| 13 | Thickness | 2.66±0.1 | mm |
| 15 | Duty | 1/128 | - |
机械外形图
引脚定义
| Pin No | Symbol | I/O | Function |
| 1 | GND | P | Ground of OEL System |
| 2 | VCC | P | Power supply for OEL System |
| 3 | SCL | I | When SPI mode is selected SCL will be the serial clock input SCL. When I2C mode is selected, SCL is the serial clock input, SCL. |
| 4 | SDA | I | When SPI mode is selected, SDA will be the serial data input SI and When I2C mode is selected, SDA be the serial data input SDA |
| 5 | RES | I | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. |
| 6 | DC | I | Data/Command Controll This pin is Data/Command control pin. When the pin is pulled high and serial interface mode is selected, the data at SI will be interpreted as data. When it is pulled low, the data at SI will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams. |
| 7 | CS | I | Chip Select This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low. |
电光特性
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark | |
| Operating Luminance | L | 80 | 100 | - | cd/m2 | 100% pixels on | |
| Power Consumption | P | - | 120 | 150 | mW | 30% pixels on | |
| Frame Frequency | Fr | - | 100 | - | Hz | - | |
| Color Coordinate | Blue | CIE x | 0.25 | 0.29 | 0.33 | CIE1931 | Darkroom |
| CIE y | 0.29 | 0.33 | 0.37 | ||||
| Response Time | Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - | |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom | |
| Viewing Angle | △θ | 160 | - | - | Degree | - | |
| Operating Life Time | Top | 20,000 | - | - | Hours | L= 100 cd/m2 | |
产品图片
