| Product: | 2.42 Inch (2.4") OLED Display | Resolution: | 128x64 Dots |
| Display Mode: | Passive Matrix | Optics: | All Viewing Angles |
| Outline Dim.: | 71.0(L) X 43.5(W) X 6.0(T) (mm) | Active Area: | 55.01(L) X 27.5(W) (mm) |
| Pixel Pitch: | 0.43 X 0.43 (mm) | Driving Method: | 1/64 Duty Cycle |
| Operating Temp: | -40°C To +70°C | Pin Number: | 7 Header Pins |
| Interface: | SPI Interface | Compliance: | REACH & RoHS Compliant |
| Highlight: | 2.42-inch OLED control board, SSD1309 OLED control board, 7-pin SPI OLED Display Module | ||
产品介绍
2.42英寸7针SPI接口OLED控制板是一款集成高性能OLED显示技术的控制板，适用于需要高对比度、超薄设计、低功耗显示解决方案的应用场景。控制板搭载SSD1309/SPD0301驱动芯片，支持SPI/I2C双接口通信，为用户提供灵活的连接选择。
技术参数
显示屏幕尺寸：2.42英寸
分辨率：128×64像素
显示颜色：白、黄、绿、蓝可选
控制芯片：SSD1309/SPD0301
通讯接口：SPI/I2C
物理接口：GH1.25 7Pin
工作电压：3.3V/ 5V
显示尺寸：55.01 × 27.49mm
产品尺寸：61.50 × 39.50mm
产品特点
高对比度：2.42英寸7针SPI接口OLED的自发光特性提供极高的对比度和出色的显示效果。
超薄轻量化：由于OLED自发光原理，无需背光源，使得控制板更薄、更轻。
低功耗运行：2.42英寸OLED在显示黑色时不消耗能量，这有助于降低整体功耗。
广视角显示屏：2.42英寸OLED 提供超过170°的广视角，保证不同角度观看清晰。
快速响应：2.42英寸7针SPI接口OLED的快速响应时间适合动态图像和快速刷新的应用。
支持SPI/I2C通信：兼容两种通信协议，方便与各种单片机连接。
软件支持
提供全面的软件开发支持，包括：
例程资料：提供Raspberry Pi、Arduino、STM32、ESP32等平台的示例代码。
通信协议：提供SPI、I2C通信协议的实现细节。
图形库：支持基本的图形绘制和文本显示功能。
字体支持：内置多种字体，满足不同语言文字的显示需求。
外形图
接口管脚定义（硬件连接）
| Pin | Symbol | Descriptions |
| 1 | GND | Ground of Logic Circuit |
| 2 | VDD | Power Supply for Logic |
| 3 | SCK | Serial clock input. |
| 4 | SDA | Serial data input. |
| 5 | RST | This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. |
| 6 | DC | This pin is Data/Command control pin. When the pin is pulled high and serial interface mode is selected, the data at SDIN will be interpreted as data. When it is pulled low, the data at SDIN will be transferred to the command register. |
| 7 | CS | Chip Select. Chip is selected when CS0 = “L” . |
绝对最大额定值
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Supply Voltage for Display | VCC | 8 | 17 | V |
| Operating Temperature | TOP | -40 | 70 | .C |
| Storage Temperature | TSTG | -40 | 85 | .C |
| Life Time (220 cd/m2) | 13,000 | - | hour | |
| Life Time (200 cd/m2) | 15,000 | - | hour | |
| Life Time (180 cd/m2) | 16,000 | - | hour |
电气规格
| Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
| Normal mode current consumption | All pixels on | - | 17 | 25 | mA | |
| Standby mode current consumption | Standby mode 10% pixels on | - | 0.5 | 1.5 | mA | |
| Normal mode power consumption | All pixels on | - | 71.5 | 97.5 | mW | |
| Standby mode power consumption | Standby mode 10% pixels on | - | 6.5 | 19.5 | mW | |
| Brightness | Lbr | - | 90 | 110 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | C.I.E. 1931 | 0.24 0.28 | 0.28 0.32 | 0.32 0.36 | |
| Dark Room Contrast | CR | - | 2000:1 | - | - | |
| Viewing Angle | - | 160 | - | - | degree |

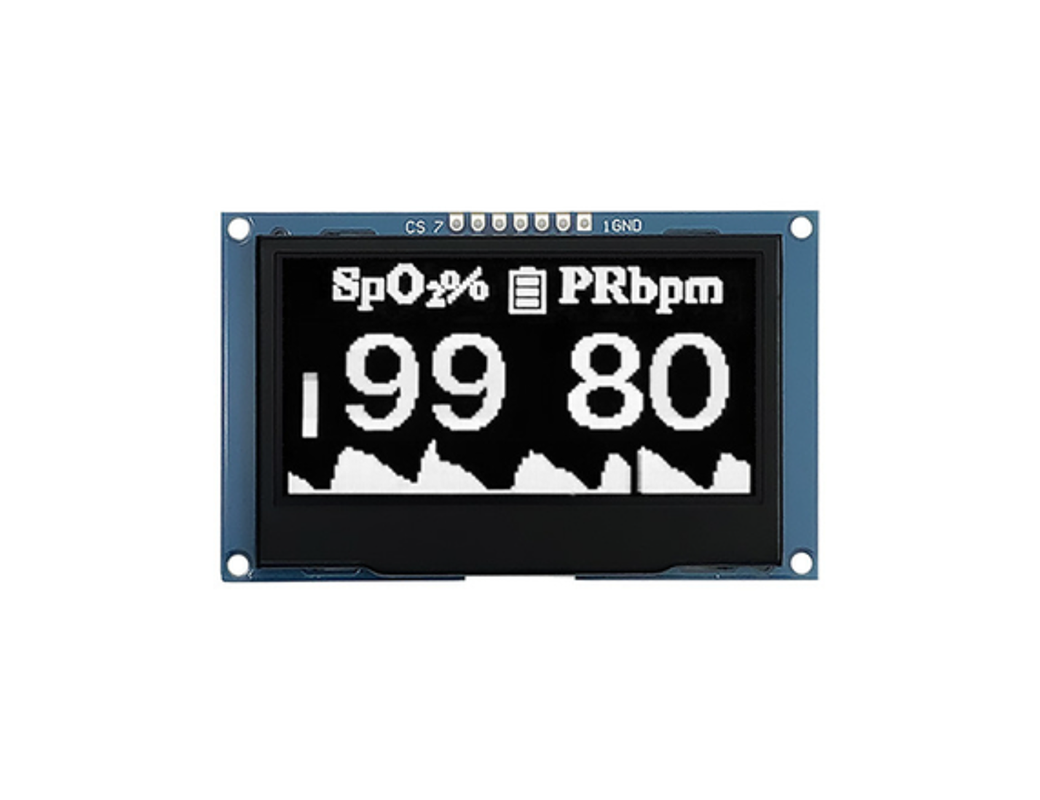

产品图片
可靠性测试条件
| Item | Conditions | Criteria |
| High Temperature Operation | 70.C, 240 hrs | The operational functions work. |
| Low Temperature Operation | -40.C,120 hrs | |
| High Temperature Storage | 85.C, 120 hrs | |
| Low Temperature Storage | -40.C, 120 hrs | |
| High Temperature/Humidity Operation | 65.C, 90% RH, 120 hrs | |
| Thermal Shock | -40°C ~85°C (-40°C /30min; transit /3min; 85°C /30min; transit/3min) 1cycle: 66min, 100 cycles |
