6.2 英寸工业 RGB TFT 显示屏 1000nits 超宽温度操作 3.3V

产品中心/ product: OLED屏 TFT彩屏 TFT触摸屏 HDMI TFT显示器工业级TFT屏条型TFT屏圆形TFT屏方形TFT屏全视角TFT屏电阻触摸TFT屏电子墨水屏高亮液晶屏树莓派触摸屏 OLED模块
推荐产品/ hot

产地：深圳 / 中国

品牌：SAEF

型号：SFTO620BH-7180AN

认证：ISO9001 / ISO14000

资料下载视频播放

Product:	6.2 Inch RGB TFT	Resolution:	1024x600 Pixels
Model No.:	SFTO620BH-7180AN	Surface Luminance:	1000 Cd/m2 (nits)
Touch Screen:	Without	Viewing Direction:	IPS, Full Viewing Angle
Pin Number:	50 Pins	Connection:	ZIF
Interface:	RGB 24 Bits	LED Lifetime:	40,000 Hours
Outline Dimension:	143.37(W)×87.13(H)×2.56(T) (mm)	Top::	-30°C To +80°C
Active Area:	137.47(W) X 77.23(H) (mm)	Compliance:	REACH & RoHS Compliant
Highlight:	1000nits Industrial TFT Display, Industrial RGB TFT Display, 6.2 Inch Industrial TFT Display

6.2寸1024*600 IPS TFT液晶屏 RGB接口产品介绍

RGB接口是传统的并行接口。它分别传输红、绿、蓝颜色通道的信号，并通过合成这三个通道的信号来显示图像。 RGB接口具有信号传输稳定、色彩还原准确的特点。适合对色彩要求较高的应用，如工业设计、广告显示等。RGB接口的成本相对较低，信号线较多，可以提供更多的控制信号，方便与各种控制设备连接。

这款型号SFTO620BH-7180AN采用6.2英寸对角RGB接口显示屏，1024*600点阵，采用IPS技术，让用户从不同角度都能体验到完美的视觉体验。其工作电压仅为3V-3.6V，典型电压为3.3V，表面亮度为1000nits。用户可以在显示屏上添加RTP或CTP，以增强人机交互效果。

特征

Characteristics	Size	6.2 inch
	Resolution	1024(horizontal)*600(Vertical)
	Interface	24BIT RGB
	Connect type	Connector
	Color Depth	16.7M
	Technology type	a-Si
	Pixel pitch (mm)	0.13425x0.12872
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	LCD Driver IC	-
	Viewing Direction	IPS, All viewing angles
	Gray Scale Inversion Direction	ALL
Mechanical	LCM (W x H x D) (mm)	143.3787.132.56
	Active Area(mm)	137.472 x 77.232
	With /Without TSP	Without TSP
	Weight (g)	TBD
	LED Numbers	20LED

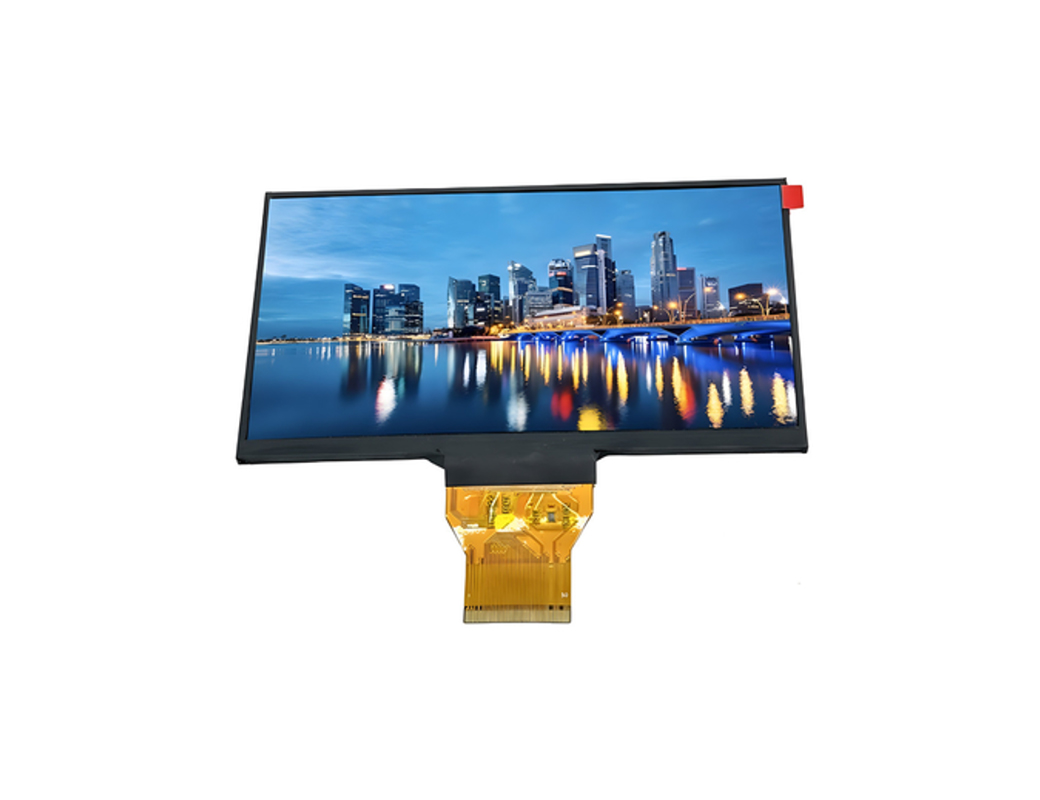

6.2寸1024*600 IPS TFT液晶屏 RGB接口产品图

20240811143707_29270

接口引脚说明

Pin.No	Symbol	Function
1,2	VLED+	Power for LED backlight (Anode)
3,4	VLED-	Power for LED backlight (Cathode)
5	GND	Power ground
6	NC	Not connect
7	DVDD	Digital Power
8	NC	Not connect
9:	DE	Data Enable signal.
10	VSD	Vertical sync input. Negative polarity
11	HSD	Horizontal sync input. Negative polarity
12-19	B7-R0	Blue Data
20-27	G7-G0	Green Data
28-35	R7-R0	Red Data
36	GND	Ground
37	DCLK	Colock signal
38	GND	Display on/off
39	SHLR	Left or Right Display Control
40	UPDN	Up / Down Display Control
41	NC	Not connect
42	NC	Not connect
43	VPP	OTP Power(+7.8V)
44	RSTB	Global reset pin. Active low to enter reset state.OTP reset Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ , C=1μF)
45	SCL	OTP Serial clock input
46	NC	Not connect
47	NC	Not connect
48	GND	Power ground
49	SDA	OTP Serial data input
50	CS	OTP Chip select pin

绝对最大额定值

行车背光

光学特性

6.2寸1024*600 IPS TFT液晶屏 RGB接口产品图片

pl183624238-remark

20240811144403_48000

环境/可靠性测试

No	Test Item	Condition	Remarks
1	High Temperature Operation	Ts= +80℃ , 240hrs	Note 1 IEC60068-2-2, GB2423. 2-89
2	Low Temperature Operation	Ta= -30℃ , 240hrs	Note 2 IEC60068-2-1 GB2423.1-89
3	High Temperature Storage	Ta= +80℃ , 240hrs	IEC60068-2-2 GB2423. 2-89
4	Low Temperature Storage	Ta= -30℃ , 240hrs	IEC60068-2-1 GB/T2423.1-89
5	High Temperature & Humidity Storage	Ta= +60℃ , 90% RH max, 160 hours	IEC60068-2-3,GB/T2423.3-2006
6	Thermal Shock (Non-operation)	-30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle	Start with cold temperature, end with high temperature IEC60068-2-14,GB2423.22-87
7	Electro Static Discharge (Operation)	C=150pF, R=330 Ω , 5 points/panel Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~ 35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)	IEC61000-4-2 GB/T17626.2-1998
8	Vibration(Non-operation)	Frequency range: 10~55Hz, Stroke: 1.mm Sweep: 10Hz~55Hz~10Hz 2 hours for each direction of X .Y. Z. (package condition)	IEC60068-2-6 GB/T2423.5-1995
9	Shock (Non-operation)	60G 6ms, ± X, ±Y , ± Z 3 times for each direction	IEC60068-2-27 GB/T2423.5-1995
10	Package Drop Test	Height: 80 cm, 1 corner, 3 edges,6 surfaces	IEC60068-2-32 GB/T2423.8-1995
