| Keywords: | 13.3 Inch Capacitive Touchscreen TFT Module | Resolution: | 1920*1080 Pixels |
| LCD Interface: | EDP | Surface Luminance: | 1000 Cd/m2 |
| Touch Screen: | CTP (Projective Capacitive Touch Screen) | CTP Interface: | USB |
| LCD Size: | 305.19 X 177.69 X 2.58 Mm (w/o Touch) | LCD With Touch: | 307.55 X 185.62 X 4.58 Mm (with Touch) |
| Active Area: | 293.76 X 165.24 Mm | Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ | Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H | Contrast Ratio: | 1000 |
| Display Color: | 16.7 M | LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 1000nits PCAP TFT LCD Display Module, 1920x1080 PCAP TFT LCD Display Module | ||
13.3 英寸 TFT LCD 模块，带 PCAP 产品说明
SFTO1330XC-7119A10-CT TFT LCD 显示屏使用 eDP 在 1920×RGB×1080 点板上以 1670 万色演示图形和文本（嵌入式显示端口）Ver1.2 接口和为 TFT-LCD 面板驱动提供 +3.3VDC 电源电压。在这款 SFTO1330JD-7057A-CT TFT LCD 显示面板中，采用了具有出色色彩性能的滤色片，可实现更明亮、更清晰的图像，使该显示器最适合在多媒体中使用应用。各个方向都有最佳观看效果。无需背光驱动 LED 控制器。 EDP传输速率规格：2.7Gbps/2lane 8bit。
特征
| Characteristics | Size | 13.3 inch |
| Resolution | 1920(horizontal)x1080(Vertical) | |
| Interface | eDP1.2/2.7Gbps/2lane | |
| Connect type | 20455-030E-76 (I-PEX) | |
| Color Depth | 16.7M | |
| Technology type | A-si | |
| Display Spec. Pixel pitch (mm) | 0.153 x 0.153 | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| TP Driver IC | NC | |
| LCD Surface Treatment | Anti-glare coating:(3H) | |
| Viewing Direction | U/D/L/R:85/85/85/85 | |
| Contrast Ratio | 1000(TYP.) | |
| Color gamut | 72% | |
| Luminance(cd/m2) | 1000(TYP.) | |
| Consumption of Power | LCD:1.8(W)(Max.)(White Pattern) BL:see details below | |
| LED Numbers | 50 LEDS | |
| Weight (g) | - | |
| Mechanical | Outline (W x H x D) (mm) | 307.55 x 185.62 x 4.58 mm |
| TP Lens view area(mm) | - | |
| LCM (W x H x D) (mm) | 305.19 x 177.69 x 2.58 mm | |
| LCD Active Area(mm) | 293.76 x 165.24 | |
| With /Without TSP | With TSP |

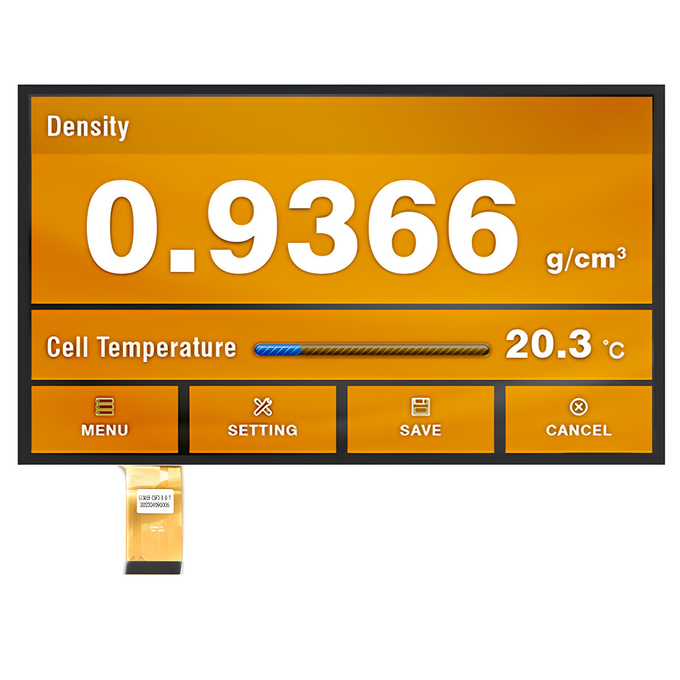

13.3寸TFT液晶模组带PCAP产品图
显示管脚定义
| Terminal | Symbol | Functions |
| 1 | NC | No connection |
| 2 | H-GND | Ground |
| 3 | LAN1 N | Complement Signal Link _Lane1 |
| 4 | LAN1 P | True Signal Link _Lane1 |
| 5 | H-GND | Ground |
| 6 | LAN0_N | Complement Signal Link _Lane0 |
| 7 | LAN0_P | True Signal Link _Lane0 |
| 8 | H-GND | |
| 9 | AUXP | True Signal Link _Auxiliry Channel |
| 10 | AUXN | |
| 11 | H-GND | Ground |
| 12 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 14 | BIST | Panel self test enable |
| 15 | H_GND | Ground |
| 16 | H_GND | Ground |
| 17 | HPD | HPD(Hot Plug Detect) Signal Pin |
| 18 | BL_GND | High Speed Ground |
| 19 | BL_GND | High Speed Ground |
| 20 | BL_GND | High Speed Ground |
| 21 | BL_GND | High Speed Ground |
| 22 | BL EN | Backlight on/off Control pin |
| 23 | BL PWM | Back light PWM Dimming |
| 24 | NC | No connection |
| 25 | NC | No connection |
| 26 | BL PWR | Backlight power |
| 27 | BL PWR | Backlight power |
| 28 | BL PWR | Backlight power |
| 29 | BL PWR | Backlight power |
| 30 | NC | No connection |
电气规格
| Parameter | Min. | Typ. | Max. | Unit | Remarks | |
| Surface Brighness | 800 | 1000 | cd/m2 | |||
| Power Supply Voltage | VDD | 3 | 3.3 | V | Note 1 | |
| Permissible Input Ripple Voltage | VRF | - | - | 100 | mV | At VDD = 3.3V |
| Power Supply Current | IDD | - | - | mA | Note1 | |
| Differential Input Voltage | VID | - | 1320 | mV | ||
| Power Consumption | 0.9 | W | Note1 | |||
| - | 4 | - | W | Note2 | ||
| - | 4.9 | - | W | |||
PCAB USB 引脚定义
1 VCC
2 USB-
3 USB+
4 GND
13.3 英寸 TFT LCD 模块，带 PCAP 产品图片
