电容式触摸屏TFT 3.6英寸圆形显示模块描述
TS8036WV001-T是一款3.6英寸彩色有源矩阵TFT（薄膜晶体管）LCD（液晶显示器），采用非晶硅TFT作为开关器件。该模型由透射式TFT-LCD面板、驱动电路、背光单元和电容式触摸屏组成。 3.6英寸圆形TFT-LCD的分辨率为544x506像素，最多可显示1670万种颜色。这款圆形 TFT LCD 配备 IC ST72566，支持 RGB 24 位接口。配备5点PCAP触摸屏，支持I2C接口。其多点触控功能和出色的视觉性能使其成为要求苛刻的应用的理想选择。
该显示器结合了尖端显示技术、强大的性能和多功能兼容性，使其成为各种汽车、工业、医疗和智能家居应用的最佳解决方案。
特征
-低输入电压：VDD：2.7~3.6V；
- TFT LCD显示颜色：1670万色
-CPU接口：-RGB 24BIT
-内部电源电路。
| General Information Items | Specification Main Panel | Unit |
| Display area(AA) | 89.76(H) *83.49(V) (3.6inch ) | mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 16.7M | colors |
| Number of pixels | 544(RGB) *506 | dots |
| Pixel arrangement | RGB vertical stripe | - |
| Pixel pitch | 0.165(H) *0.165(V) | mm |
| Viewing angle | ALL | o'clock |
| Drive IC | ST72566 | - |
| Color Pixel Arrangement | RGB vertical stripe | |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature | -30～+85 | ℃ |
| Storage temperature | -30～+85 | ℃ |
机械信息
| Item | Min. | Typ. | Max. | Unit | Note | |
| Module size | Horizontal(H) | - | 107.13 | - | mm | -0.1 |
| Vertical(V) | - | 107.13 | - | mm | -0.1 | |
| Depth(D) | - | 9.76 | - | mm | ±0.4 | |
| Weight | - | TBD | - | g | - | |

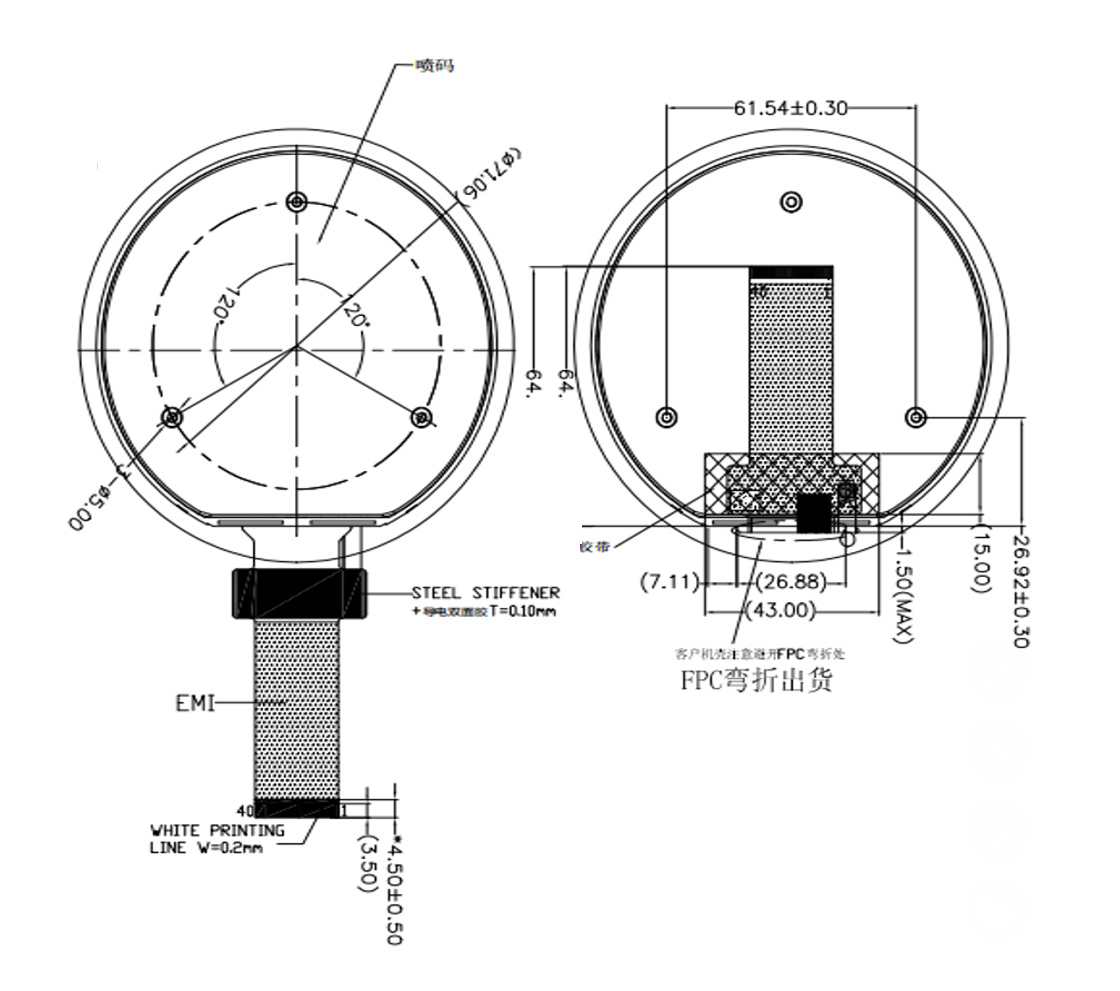

电容式触摸屏TFT 3.6英寸圆形显示模组图纸
引脚说明
| PIN NO. | SYMBOL | LEVEL | DESCRIPTION |
| 1 | LEDK | L | Backlight- |
| 2 | LEDA | H | Backlight+ |
| 3 | GND | H | power ground |
| 4 | VCC | H | power supply(2.7-3.6V) |
| 5-12 | R0-R7 | H/L | Red data bus |
| 13-20 | G0-G7 | H/L | Green data bus |
| 21-28 | B0-B7 | H/L | Blue data bus |
| 29 | GND | L | power ground |
| 30 | DCLK | H/L | Pixel clock signal pin |
| 31 | DISP | H/L | connected to VDD in normal operation mode. connected to GND, the IC is in standby mode. |
| 32 | HSYNC | H/L | Horizontal sync. |
| 33 | VSYNC | H/L | Vertical sync. |
| 34 | DE | H/L | Data enable signal |
| 35 | AUTODL | H/L | OPT function control pin |
| 36 | CS | H/L | Chip select input pin |
| 37 | SCL | H/L | Serial clock input. |
| 38 | SDA | H/L | Serial data input pin |
| 39 | NTC1 | / | Connect thermistor |
| 40 | NTC2 | / | Connect thermistor |
绝对最大额定值
| Item | Symbol | Values | Unit | |
| Min | Max. | |||
| Supply Voltage for Logic circuit | IOVCC | -0.3 | 4.6 | V |
| Supply Voltage for analog circuit | VCI | -0.3 | 4.6 | V |
直流电气特性
| Item | Symbol | Values | Unit | Remark | ||
| Min | Typ | Max. | ||||
| Power Supply | VCC | 2.7 | 2.8 | 3.3 | V | |
| Normal mode Current consumption | Icc | - | - | 55 | mA | VCC=3.3V |
| TFT Gate ON Voltage | VGH | 11.5 | 12 | 16 | V | |
| TFT Gate OFF Voltage | VGL | -8 | -12 | -12 | V | |
背光单元特性
| Item | Symbol | Values | Unit | Remark | ||
| Min | Typ | Max. | ||||
| Forward supply Voltage | Vf | 13.5 | - | 16 | V | |
| Forward supply Current | If | - | 180 | - | mA | |
| LCM Luminance | LV | 800 | 1000 | - | cd/m2 | IB=180mA |
| Uniformity | / | 80 | % | - | ||

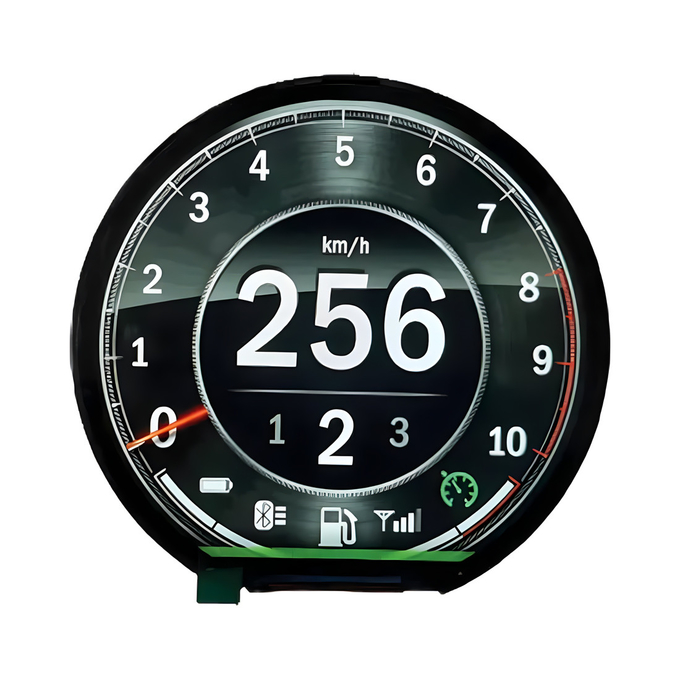

电容式触摸屏TFT 3.6英寸圆形显示模组产品图片
可靠性测试
| Test Item | Test Condition | Inspection after test |
| High Temperature Operation | 85℃ for 96 hours | After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects: 1. Poor functionality, such as missing display, abnormal display, severe light explosion, etc. 2. There are no polarizing film bubbles, OCA bubbles, or other defects in the appearance. 2. Each tested module can only be used for one of the testing projects |
| Low Temperature Operation | -30℃ for 96 hours | |
| High Temperature Storage | 85℃ for 96 hours | |
| Low Temperature Storage | -30℃ for 96 hours | |
| High Temperature Operation Humidity Operation | 60℃, 90%RH for 72 hours | |
| Thermal Shock | -10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles | |
| Vibration Test (No Operation) | Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min Test Period: 6 Cycles for each direction of X, Y, Z | |
| Static electricity test | Touch ±4KV,air touch ±8KV |
