| Product: | 3.6 Inch Circular TFT Display | Resolution: | 544 (RGB) X 506 Dots |
| Surface Luminance: | 1000 Cd/m2 (nits) | Touch Screen: | Capacitive Touchscreen (CTP) |
| Viewing Direction: | IPS Full Viewing Angle | Driver IC: | ST72566 |
| Pin Number: | 40 Pins | Connection: | ZIF |
| Interface: | RGB 24 Bits | LED Lifetime: | 40,000 Hours |
| Top:: | -30°C To +85°C | Outline Dimension: | 107.13(W )×107.13(H)×9.76(T) Mm |
| Active Area: | 89.76(W) X83.49(H) Mm | Compliance: | REACH & RoHS Compliant |
| Highlight: | High Brightness Circular LCD Display, 3.6 inch Circular LCD Display, 544x506 Circular LCD Display | ||
车规级3.6英寸圆形TFT液晶显示模块描述
圆形IPS液晶屏作为一种新兴的显示技术，以其独特的优势和广泛的应用场景逐渐受到用户的关注。圆角设计让屏幕边缘更加平滑，视觉效果更加舒适。同时，这样的设计也让屏幕更加符合人体工学，使用起来更加方便。采用高清IPS液晶屏可以呈现更加细致逼真的画面效果，也提升了用户的视觉体验。圆形IPS液晶屏的优点是能耗低，这意味着它在运行时产生的热量较少，不需要大型散热器，从而减少能源浪费和环境污染。
TS8036WV001-T是一款3.6英寸TFT模块，采用544x506分辨率IPS技术。这款圆形TFT LCD配备IC ST72566，支持RGB 24位接口。配备5点PCAP触摸屏，支持I2C接口。其多点触控功能和出色的视觉性能使其成为要求苛刻的应用的理想选择。
该显示器结合了尖端显示技术、强大的性能和多功能兼容性，使其成为各种汽车、工业、医疗和智能家居应用的最佳解决方案。
特征
-低输入电压：VDD：2.7~3.6V；
- TFT LCD显示颜色：1670万色
-CPU接口：-RGB 24BIT
-内部电源电路。
| General Information Items | Specification Main Panel | Unit |
| Display area(AA) | 89.76(H) *83.49(V) (3.6inch ) | mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 16.7M | colors |
| Number of pixels | 544(RGB) *506 | dots |
| Pixel arrangement | RGB vertical stripe | - |
| Pixel pitch | 0.165(H) *0.165(V) | mm |
| Viewing angle | ALL | o'clock |
| Drive IC | ST72566 | - |
| Color Pixel Arrangement | RGB vertical stripe | |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature | -30～+85 | ℃ |
| Storage temperature | -30～+85 | ℃ |
机械信息
| Item | Min. | Typ. | Max. | Unit | Note | |
| Module size | Horizontal(H) | - | 107.13 | - | mm | -0.1 |
| Vertical(V) | - | 107.13 | - | mm | -0.1 | |
| Depth(D) | - | 9.76 | - | mm | ±0.4 | |
| Weight | - | TBD | - | g | - | |
车规级3.6英寸圆形TFT液晶显示模组图纸
引脚说明
| PIN NO. | SYMBOL | LEVEL | DESCRIPTION |
| 1 | LEDK | L | Backlight- |
| 2 | LEDA | H | Backlight+ |
| 3 | GND | H | power ground |
| 4 | VCC | H | power supply(2.7-3.6V) |
| 5-12 | R0-R7 | H/L | Red data bus |
| 13-20 | G0-G7 | H/L | Green data bus |
| 21-28 | B0-B7 | H/L | Blue data bus |
| 29 | GND | L | power ground |
| 30 | DCLK | H/L | Pixel clock signal pin |
| 31 | DISP | H/L | connected to VDD in normal operation mode. connected to GND, the IC is in standby mode. |
| 32 | HSYNC | H/L | Horizontal sync. |
| 33 | VSYNC | H/L | Vertical sync. |
| 34 | DE | H/L | Data enable signal |
| 35 | AUTODL | H/L | OPT function control pin |
| 36 | CS | H/L | Chip select input pin |
| 37 | SCL | H/L | Serial clock input. |
| 38 | SDA | H/L | Serial data input pin |
| 39 | NTC1 | / | Connect thermistor |
| 40 | NTC2 | / | Connect thermistor |
绝对最大额定值
| Item | Symbol | Values | Unit | |
| Min | Max. | |||
| Supply Voltage for Logic circuit | IOVCC | -0.3 | 4.6 | V |
| Supply Voltage for analog circuit | VCI | -0.3 | 4.6 | V |
直流电气特性
| Item | Symbol | Values | Unit | Remark | ||
| Min | Typ | Max. | ||||
| Power Supply | VCC | 2.7 | 2.8 | 3.3 | V | |
| Normal mode Current consumption | Icc | - | - | 55 | mA | VCC=3.3V |
| TFT Gate ON Voltage | VGH | 11.5 | 12 | 16 | V | |
| TFT Gate OFF Voltage | VGL | -8 | -12 | -12 | V | |
背光单元特性
| Item | Symbol | Values | Unit | Remark | ||
| Min | Typ | Max. | ||||
| Forward supply Voltage | Vf | 13.5 | - | 16 | V | |
| Forward supply Current | If | - | 180 | - | mA | |
| LCM Luminance | LV | 800 | 1000 | - | cd/m2 | IB=180mA |
| Uniformity | / | 80 | % | - | ||

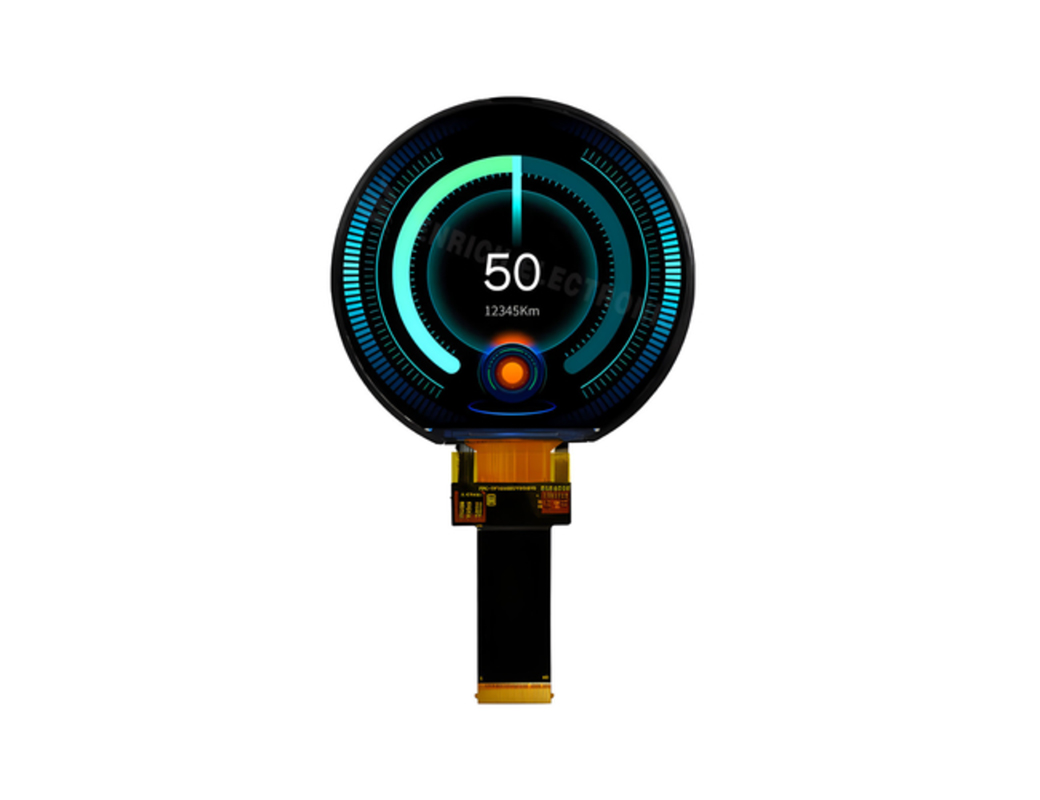

车规级3.6英寸圆形TFT液晶显示模块产品图片
