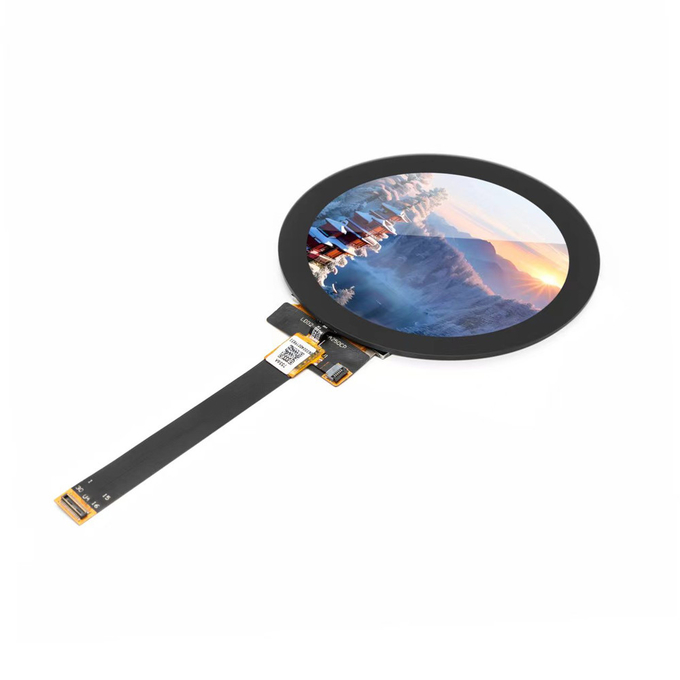

2.8 英寸圆形 LCD 显示模块 480x480 点 8 位 RGB 接口带 CTP

产品中心/ product: OLED屏 TFT彩屏 TFT触摸屏 HDMI TFT显示器工业级TFT屏条型TFT屏圆形TFT屏方形TFT屏全视角TFT屏电阻触摸TFT屏电子墨水屏高亮液晶屏树莓派触摸屏 OLED模块
推荐产品/ hot

产地：深圳 / 中国

品牌：SAEF

型号：TS8028WV001-T

认证：ISO9001 / ISO14000

资料下载视频播放

Product:	2.8 Inch Round TFT Display	Resolution:	480 (RGB) X 480 Dots
Touch Screen:	Capacitive Touchscreen (CTP)	Viewing Direction:	IPS Full Viewing Angle
Driver IC:	SC7701S	Pin Number:	30 Pins
Connection:	ZIF	Surface Luminance:	250 Cd/m2 (nits)
Interface:	RGB 18 Bits	LED Lifetime:	40,000 Hours
Top::	-20°C To +70°C	Outline Dimension:	86.7(W )×86.7(H)×4.19(T) Mm
Active:	70.13(W) X70.13(H) Mm	Compliance:	REACH & RoHS Compliant
Highlight:	2.8 Inch Circular LCD Display, 480x480 Dots Circular LCD Display, 8bit RGB Interface Circular LCD Display

2.8寸480x480圆形TFT液晶显示模块描述

TS8028WV001-T是一款采用非晶硅TFT作为开关器件的彩色有源矩阵TFT（薄膜晶体管）LCD（液晶显示器）。该模型由透射式 TFT-LCD 面板、驱动电路和背光单元组成。 2.8英寸圆形TFT-LCD的分辨率为480×480像素，最多可显示1670万种颜色。

本产品广泛应用于通讯、家用电器、工业控制、医疗设备、仪器仪表、汽车电子、GPS导航、金融设备、消费类设备、信息家电、文教娱乐、考勤机、指纹扫描仪、门禁机、股票机、对讲机、可视门铃、学习机、阅读器等。

特征

-低输入电压：VDD：2.7~3.6V；

- TFT LCD显示颜色：1670万色

-CPU接口：-RGB 18BIT

-内部电源电路。

General Information Items	Specification Main Panel	Unit
Display area(AA)	70.128(H) *70.128(V) (2.8inch )	mm
Driver element	a-Si TFT active matrix	-
Display colors	16.7M	colors
Number of pixels	480(RGB) *480	dots
Pixel arrangement	RGB vertical stripe	-
Pixel pitch	0.180(H) *0.180(V)	mm
Viewing angle	ALL	o'clock
Drive IC	ST7701S	-
Color Pixel Arrangement	RGB vertical stripe
Display mode	Transmissive/ Normally Black	-
Operating temperature	-20～+70	℃
Storage temperature	-30～+80	℃

2.8寸480x480圆形TFT液晶显示模块图纸

pl179414305-remark

引脚说明

Pin NO.	Symbol	Level	Function
1	LEDA	H	Backlight+
2	LEDK1	L	Backlight-
3	LEDK2	L	Backlight-
4	LEDK3	L	Backlight-
5	LEDK4	L	Backlight-
6	VDD 2.8V	H	Power supply(2.5-3.3V)
7	IOVCC1.8V	H	Power supply(1.65-3.3V)
8	LCM RST	H/L	LCM Hardware reset pin
9	TE	H/L	Tearing effect output
10	PWM	H/L	Backlight on/off control pin.
11	GND	L	Ground
12	D0P	H/L	HSSI_D0+ are differential data signal line.
13	D0N	H/L	HSSI_D0- are differential data signal line.
14	GND	L	Ground
15	D1P	H/L	HSSI_D1+ are differential data signal line.
16	D1N	H/L	HSSI_D1- are differential data signal line.
17	GND	L	Ground
18	CP	H/L	HSSI_CLK+ are differential data signal line.
19	CN	H/L	HSSI_CLK- are differential data signal line.
20	GND	L	Ground
21	NC		NC
22	GND	L	Ground
23	NC		NC
24	GND	L	Ground
25	TP-INT	H/L	Interrupt pin
26	TP-SDA	H/L	Serial data input pin
27	TP-SCL	H/L	Serial clock input
28	TP-REST	H/L	TP Hardware reset pin
29	TP-VCC	H/L	Power supply 2.8V
30	GND	L	Ground

绝对最大额定值

Item	Symbol	Values		Unit
Item	Symbol	Min	Max.	Unit
Supply Voltage for Logic circuit	IOVCC	-0.3	4.6	V
Supply Voltage for analog circuit	VCI	-0.3	4.6	V

直流电气特性

Item	Symbol	Values			Unit	Remark
Item	Symbol	Min	Typ	Max.	Unit	Remark
Power Supply	VCC	2.7	2.8	3.3	V
Normal mode Current consumption	Icc	-	-	55	mA	VCC=2.8V
TFT Gate ON Voltage	VGH	11.5	12	16	V
TFT Gate OFF Voltage	VGL	-8	-12	-12	V

背光单元特性
