信创天源SFTO1560SM-7050A3N PCAP TFT显示屏是一款 15.6 英寸彩色有源矩阵 TFT LCD 模块，采用非晶硅 TFT（薄膜晶体管）作为有源开关器件。具有 15.6 英寸对角线测量的有效区域，具有全高清分辨率（水平 1920 x 垂直 1080 像素阵列），每个像素细分为排列成垂直条纹的红、绿、蓝点。该模块可以显示 1670 万种（6 位 + 2FRC）颜色，色域为 45%。内置 LED 驱动器。
该显示器使用 eDP（嵌入式显示端口）Ver1.2 接口，采用 +3.3VDC 电源电压驱动 TFT-LCD 面板。SFTO1560SM-7050A3N TFT-LCD 面板采用彩色滤光片，色彩表现优异，图像更明亮、更清晰，是多媒体应用的理想选择。它可在各个方向提供最佳观看效果，并且无需背光驱动 LED 控制器。EDP 传输速率规格为 2.7Gbps/2 通道 8 位。
主要特点
· eDP 接口
· 高速响应
· 6 位 (Hi-FRC) 色深，显示 1670 万种颜色
· 集成侧光式 (LED) 背光
· 兼容 RGB98% 和 NTSC45%（也提供 NTSC72%）
· 高亮度和对比度、低反射和宽视角
· 仅 DE（数据启用）
· 符合 RoHS 和无卤素标准
· 符合 TEO 6.0、ES6.0 标准
· 伽马校正
规格参数
| Keywords: | USB型电容触摸屏TFT显示器15.6 Inch |
| Resolution: | 1920*1080 Pixels |
| LCD Size: | 350.76 X 204.96 X 2.9 mm (不带触摸) |
| LCD With Touch: | 382.4 X 231.3 X 9.25 mm (带触摸) |
| Active Area: | 344.16 X 193.59 mm |
| LCD Interface: | EDP |
| CTP Interface: | USB |
| Touch Screen: | CTP电容触摸屏 (Capacitive Touch Screen) |
| Surface Luminance: | 300 Cd/m2 、 1000 Cd/m2 可选 |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H |
| Contrast Ratio: | 1000 |
| Display Color: | 16.7 M |
| LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

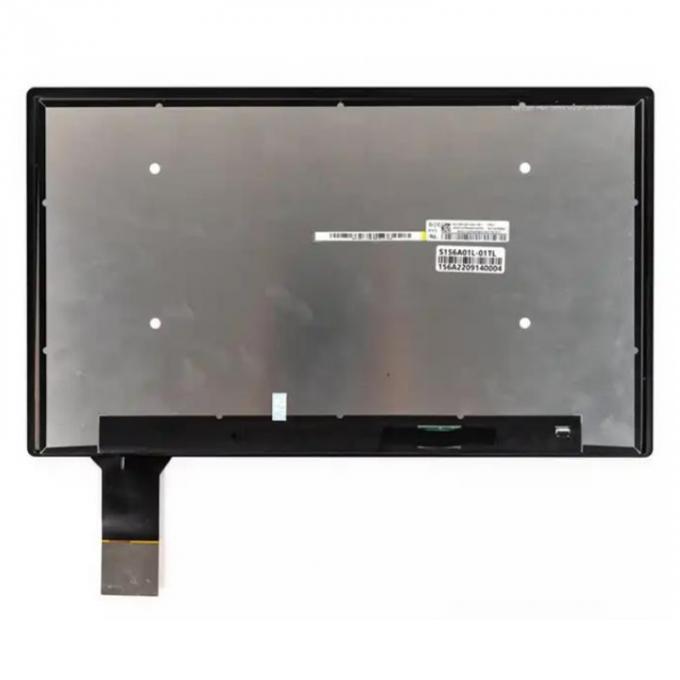

产品图像
产品结构图
机械规格
| Parameter | Specification | Unit |
| Display size | 15.6” (Diagonal) | inch |
| Active area | 344.16(H) ×193.59(V) | mm |
| Pixel Format | 1920(H) ×1080(V) | pixel |
| Pixel pitch | 0.17925(H) x 0.17925 (V) | mm |
| Pixel configuration | R, G, B vertical stripe | |
| Display mode | Normally black | |
| Power Consumption | 2.94 | W |
| Surface treatment of front polarizer | Anti-glare coating: (3H) |
外形尺寸
| Parameter | Min | Typ | Max | Unit | Remark | |
| Unit outline dimensions | Width | 350.46 | 350.76 | 351.06 | mm | |
| Height | 204.66 | 204.96 | 205.26 | mm | ||
| Depth | 2.7 | 2.9 | 3.1 | mm | w/o PWB.[Note3-2] | |
| Mass | – | – | – | g | ||
接口引脚定义
| Pin No. | Symbol | I/O | Function |
| 1 | NC | – | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | – | Reserved for LCD manufacturer’s use |
| 25 | NC | – | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | – | Reserved for LCD manufacturer’s use |
绝对最大额定值
| Parameter | Symbol | Condition | Ratings | Unit | |
| MIN | MAX | ||||
| +3.3V supply voltage | VDD | Ta=25℃ | -0.3 | +4.0 | V |
| Backlight supply voltage | VBL | Ta=25℃ | -0.3 | +26 | V |
| Input voltage(eDP) | VI | Ta=25℃ | -0.3 | +1.5 | V |
| Input voltage(BL) | VBL_I | Ta=25℃ | -0.3 | VDD+0.3 | V |
| Operation temperature | Topa | -10 | +60 | ℃ | |
| Storage temperature | Tstg | -20 | +60 | ℃ | |
