14 英寸 TFT LCD 显示屏 1920×1200 像素 EDP 接口，具有 CTP 触摸功能
SFTO1400JD-7087A-CT，这是一款 14 英寸 IPS 型全视角 TFT LCD 显示屏，分辨率为 1920×1200 像素（16:10），具有 PCAP 触摸功能。这款商用级显示模块支持 8 位 LVDS 接口，高亮度屏幕最高工作电压为 3.9V，Vdd 电压范围为 2.3V 至 3.6V。
SFTO1400JD-7087A-CT 采用电容式触摸屏设计，具有单点触摸和多点触摸功能选项。 TFT 模块 SFTO1010LX-7047A-CT 的表面亮度为 300 – 500cd/m2。如果您需要更高的亮度，我们建议您联系我们获取更多技术支持。
14 英寸 TFT LCD 显示器 SFTO1400JD-7087A-CT 可应用于各种领域，例如仪表、GPS 设备、POS 终端、扫描仪、家庭自动化、会议电话、分析仪、家用电器、安全系统等。
主要特点：
· 14 英寸 TFT LCD 显示屏，配备 2 通道 eDP 接口，链路速率为 2.7Gbps。
· 轻薄设计，易于集成。
· 2M（四舍五入）（6bit+2FRC）色深和 45% 色域，带来生动的视觉效果。
· PCAP 显示屏，底部/水平方向带有单个 LED 灯条。
· 环保，符合 RoHS 和无卤素标准。
· 板载 LED 驱动电路，性能高效。
· 驱动电压低，功耗低，节能。
· 板载 EDID 芯片 DPCD 版本 1.1，功能增强。
· 可调节背光亮度和 DC 模式，用途多样。
| Product: | 14 Inch TFT LCD Display |
| Resolution: | 1920 RGB X 1200 |
| Interface: | EDP Interface |
| Surface Luminance: | 300 – 500 Cd/m2(nits) |
| Pin Number: | 30pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) |
| Active Area: | 301.5936(H) ×188.496(V) (mm) |
| LCD Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M |
| Touch Screen: | Capacitive Touch Panel (CTP) |
| Touch Screen Interface: | IIC |
| NTSC Ratio: | 45% |
| Connection: | ZIF |
| Operating Temp.: | 0℃ To +50℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

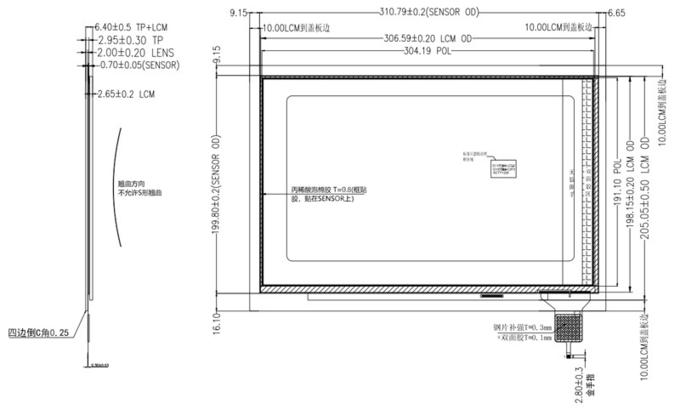

14 英寸 TFT 液晶显示屏 1920×1200 像素 EDP 接口产品图纸
接口连接器的引脚分配
| Terminal | Symbol | Functions |
| Pin No. | Symbol | Description |
| 1 | NC | No Connection |
| 2 | H_GND | Ground |
| 3 | LANE1_N | eDP RX Channel 1 Negative |
| 4 | LANE1_P | eDP RX Channel 1 Positive |
| 5 | H_GND | Ground |
| 6 | LANE0_N | eDP RX Channel 0 Negative |
| 7 | LANE0_P | eDP RX Channel 0 Positive |
| 8 | H_GND | Ground |
| 9 | AUX_CH_P | eDP AUX CH Positive |
| 10 | AUX_CH_N | eDP AUX CH Negative |
| 11 | H_GND | Ground |
| 12 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) |
| 14 | NC | No Connection |
| 15 | H_GND | Ground |
| 16 | H_GND | Ground |
| 17 | HPD | Hot Plug Detect Output |
| 18 | BL_GND | LED Ground |
| 19 | BL_GND | LED Ground |
| 20 | BL_GND | LED Ground |
| 21 | BL_GND | LED Ground |
| 22 | BL_ENABLE | LED Enable Pin(+3.3V Input) |
| 23 | BL_PWM | System PWM Signal Input |
| 24 | NC | No Connection |
| 25 | NC | No Connection |
| 26 | BL_POWER | LED Power Supply 5V-21V |
| 27 | BL_POWER | LED Power Supply 5V-21V |
| 28 | BL_POWER | LED Power Supply 5V-21V |
| 29 | BL_POWER | LED Power Supply 5V-21V |
| 30 | NC | No Connection |
绝对最大额定值
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
| Power Supply Voltage | VDD | -0.3 | 4.0 | V | Note 1 |
| eDP input Voltage | VeDP | 0 | 2.0 | V | |
| Logic Supply Voltage | VIN | VSS-0.3 | VDD+0.3 | V | |
| Operating Temperature | TOP | 0 | +50 | °C | Note 2 |
| Storage Temperature | TST | -20 | +60 | °C |
电气规格
| Parameter | Min. | Typ. | Max. | Unit | Remarks | ||
| Power Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V | Note 1 | |
| Permissible Input Ripple Voltage | VRF | – 10%VDD | – | +10% VDD | V | @ VDD = 3.3 V | |
| Power Supply Inrush Current | Inrush | – | – | 2 | A | ||
| Power Supply Curren t | Mosaic | IDD | – | – | 181.8 | mA | Note 1 |
| RGB | – | – | 303 | mA | |||
| Power Consumption | Mosaic | PM | – | – | 0.6 | W | |
| RGB | PRGB | – | – | 1.0 | W | ||
| BLU | PBL | – | – | 3.95 | W | Note 2 | |
| Total | PTotal | – | – | 4.55 | W | @Mosaic | |
LED 驱动指导规范
| Parameter | Min. | Typ. | Max. | Unit | Remarks | ||
| LED Forward Voltage | VF | – | – | 2.9 | V | ||
| LED Forward Current | IF | – | 14.5 | – | mA | ||
| LED Power Input Voltage | VLED | 5 | 12 | 21 | V | ||
| LED Power Input Current | ILED | – | – | 208.3 | mA | Note 1 | |
| LED Power Consumption | PLED | – | – | 3.95 | W | ||
| Power Supply Voltage for LED Driver Inrush | Iled inrush | – | – | 2 | A | Note 3 | |
| LED Life-Time | N/A | 30,000 | – | – | Hour | IF = 14.5mA Note 2 | |
| EN Control Le vel | Backlight On | VBL_EN | 2.5 | – | 5.0 | V | |
| Backlight Off | 0 | – | 0.5 | V | |||
| PWM Control Level | High Level | VBL_PWM | 2.5 | – | 5.0 | V | |
| Low Level | 0 | – | 0.5 | V | |||
| PWM Control Frequency | FPWM | 200 | – | 10,000 | Hz | ||
| Duty Ratio | 5 | – | 100 | % | |||
可靠性测试
| NO | Item | Conditions |
| 1 | High Temperature Storage | Ta=80℃±2℃, 72hrs |
| 2 | Low Temperature Storage | Ta=-30℃±2℃, 72hrs |
| 3 | High Temperature Operation | Ta=70℃±2℃, 72 hrs (Operation state) |
| 4 | Low Temperature Operation | Ta=-20℃±2℃, 72 hrs (Operation state) |
| 5 | High Temperature and High Humidity (Storage) | Ta=+60℃, 90%RH, 72hrs |
| 6 | Thermal Cycling Test (nonoperation) | -20℃(30min) → +70℃(30min),10cycles |
| 7 | Electrostatic Discharge | Human Body Mode100pF±10%/1500Ω±1% Air±8kV / contact±6kV Consecutive 10times/ Each discharge |
| 8 | Vibration test (with carton) | Total fixedamplitude:15mm Vibration Frequency :10~55Hz One cycle 60 seconds to 3 directions of X,Y,Z for Each 15 minutes |
| 9 | Drop (with carton) | Height: 60cm1 corner, 3 edges, 6 surfaces |

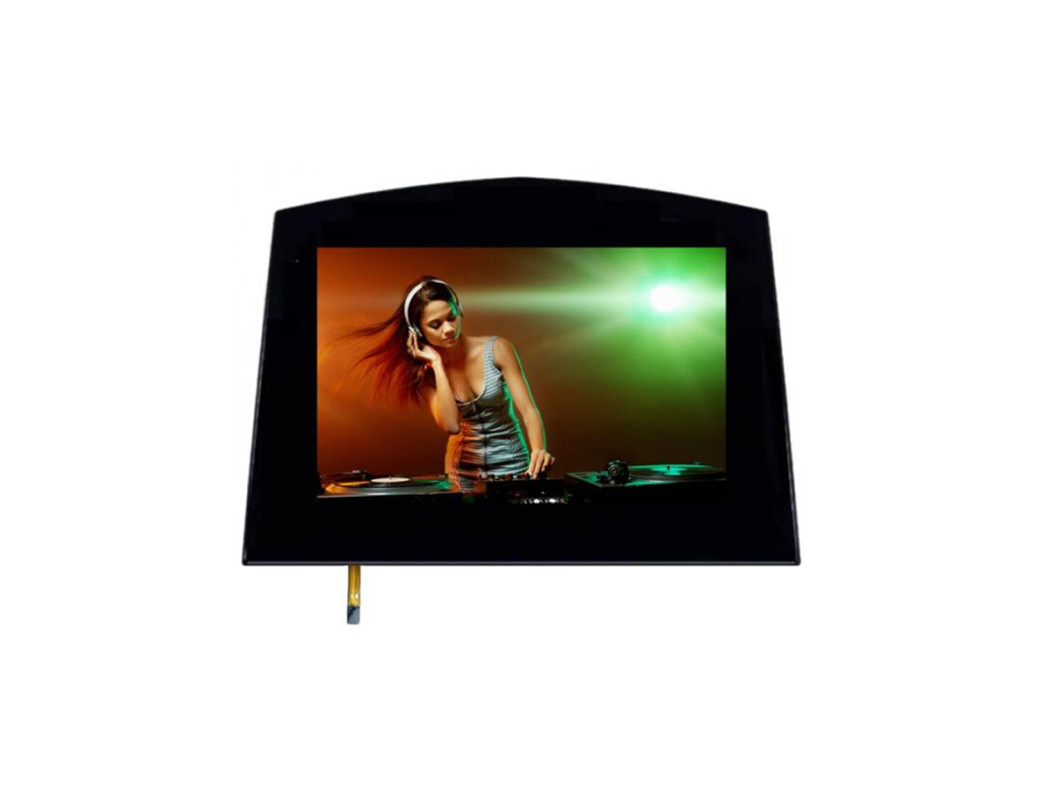

14 英寸 TFT LCD 显示屏 1920×1200 像素 EDP 接口 产品图片
14 英寸 TFT 显示屏，带定制盖板玻璃
