12.3 英寸条形 TFT LCD 1920×720 像素 LVDS 汽车级屏幕

产品中心/ product: OLED屏 TFT彩屏 TFT触摸屏 HDMI TFT显示器工业级TFT屏条型TFT屏圆形TFT屏方形TFT屏全视角TFT屏电阻触摸TFT屏电子墨水屏高亮液晶屏树莓派触摸屏 OLED模块
推荐产品/ hot

12.3 英寸条形 TFT LCD 1920×720 像素 LVDS 汽车级屏幕

产地：深圳 / 中国

型号：SFHDMI1230H-1920720A-CT

认证：ISO9001 / ISO14000

资料下载视频播放

产品详情

12.3 英寸车载条形 TFT LCD（SFHDMI1230H-1920720A-N）

产品简介

SFHDMI1230H-1920720A-N 是一款专为汽车应用而设计的 12.3 英寸彩色有源矩阵 TFT LCD 模块。其特点包括：

· 高清分辨率（1920 x 720 像素）

· 16.2M 彩色显示屏（6 位 + 2FRC）

· 45% 色域

· LVDS 接口

· 集成 LED 背光驱动器

主要特点

· 拉伸“条形”设计：非常适合汽车仪表板和其他需要宽幅的应用。

· LVDS 接口：确保与常见汽车系统兼容。

· 高亮度：850cd/m2，在各种照明条件下均具有出色的可视性。

· 宽工作温度范围：-30°C 至 +85°C，在极端环境下也能可靠工作。

· 定制：提供电容式触摸屏，以增强用户交互。

如果您想要进一步修改或有任何特定领域想要采用不同的方法，请告诉我！

Keywords:	12.3″ Inch Bar Type TFT
Resolution:	1920×720 Dots
Surface Luminance:	850 Cd/m2 (nits)
Touch Interface:	IIC(I2C)
Interface:	HDMI
Support:	Raspberry Pi, Windows, Jetson Nano
Touch Screen:	10-point Capacitive Touch Screen
Cover Glass Dimension:	Customizable
Viewing Direction:	IPS, All Viewing Angles
LED Lifetime:	40,000 Hours
Operating Temp.:	–30℃ To +85℃
Storage Temp.:	–30℃ To +85℃
Certification:	ISO9001:2015 / ISO14000:2015
Compliance:	REACH & RoHS Compliant & Halogen Free

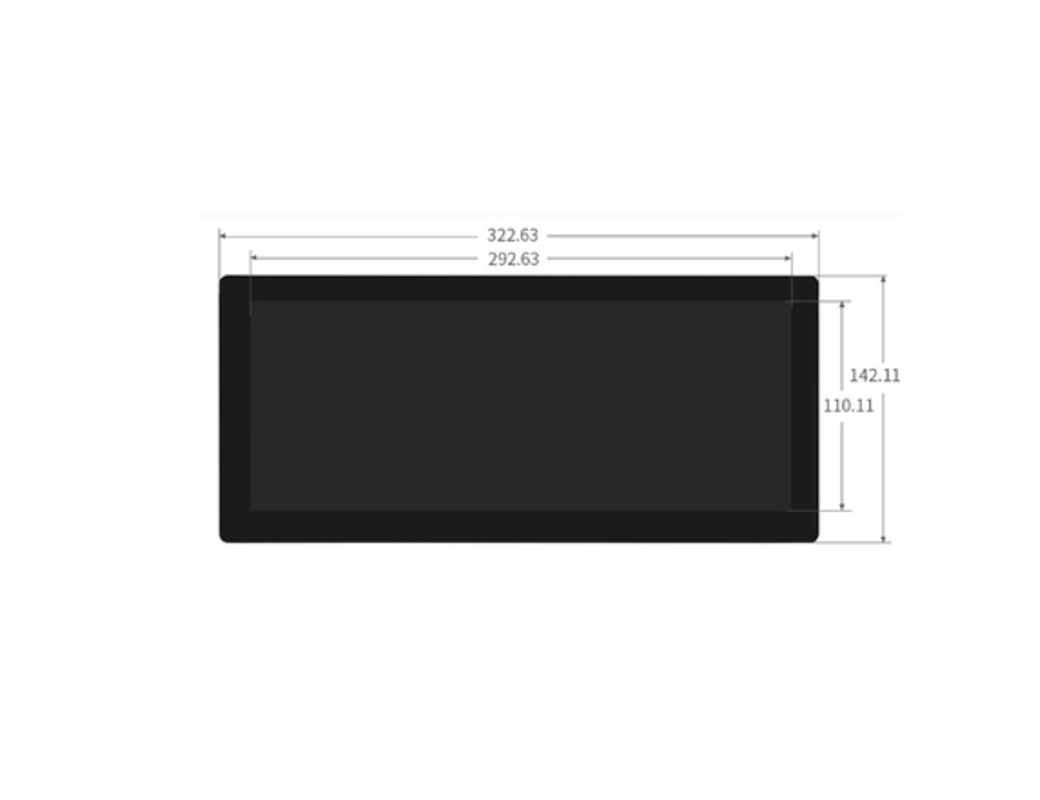

12.3 英寸条形 TFT LCD 1920×720 像素 LVDS 汽车级屏幕产品图纸

接口引脚定义

Pin no.	Symbol	Function
1	GND	Ground
2	NC	No connector
3	VCC	Digital Power
4	VCC	Digital Power
5	GND	Panel Power
6	GND	Panel Power
7	NC	No connector
8	NC	No connector
9	GND	Ground
10	ORXIN0-	Odd pixel negative LVDS differential clock input
11	ORXIN0+	Odd pixel positive LVDS differential clock input
12	ORXIN1-	Odd pixel negative LVDS differential clock input
13	ORXIN1+	Odd pixel positive LVDS differential clock input
14	ORXIN2-	Odd pixel negative LVDS differential clock input
15	ORXIN2+	Odd pixel positive LVDS differential clock input
16	ORXCLKIN-	Odd pixel negative LVDS differential clock input
17	ORXCLKIN+	Odd pixel positive LVDS differential clock input
18	ORXIN3-	Odd pixel negative LVDS differential clock input
19	ORXIN3+	Odd pixel positive LVDS differential clock input
20	ERXIN0-	Even pixel negative LVDS differential clock input
21	ERXIN0+	Even pixel positive LVDS differential clock input
22	ERXIN1-	Even pixel negative LVDS differential clock input
23	ERXIN1+	Even pixel positive LVDS differential clock input
24	ERXIN2-	Even pixel negative LVDS differential clock input
25	ERXIN2+	Even pixel positive LVDS differential clock input
26	ERXCLKIN-	Even pixel negative LVDS differential clock input
27	ERXCLKIN+	Even pixel positive LVDS differential clock input
28	ERXIN3-	Even pixel negative LVDS differential clock input
29	ERXIN3+	Even pixel positive LVDS differential clock input
30	GND	Ground
31	NC	No connector
32	RESETB	Global reset pin, active low.
33	STBYB	Standby mode, active low.
34	CA3	Output signal to indicate self-protection mode, when DE, HS, VS, DCLK, any of these signals is missing, it will become High. If using this pin, CA3 need to pulled low by a resistor else, let it float.
35	SCL	Serial interface clock input. (User floating)
36	SDA	Serial interface data input/output. (User floating)
37	CSB	Serial interface chip enable. (User floating)
38	GND	Power Ground
39	GND	Power Ground
40	NC	No connector
41	LEDA	LED power (Anode)
42	LEDA	LED power (Anode)
43	LEDA	LED power (Anode)
44	NC	No connector
45	LEDK1	Cathode 1
46	LEDK2	Cathode 2
47	LEDK3	Cathode 3
48	LEDK4	Cathode 4
49	NTC_A	NTC_Anode
50	NTC_K	NTC_Cathode

PCAP PIN 定义

Pin	Symbol	Function
1	USB_VSS	System ground
2	USB_VDD 5V	Power supply
3	USB_D+	Data +
4	USB_D-	Data –
5	VSS	System ground
6	SDA	I2C data input and output
7	SCL	I2C clock input
8	RST	External Reset, Low is active.
9	INT	External interrupts to the host
10	VDDT 3.3	Power supply
