产品概述
SF-TO700B-8834A-CT 是一款 7 英寸 IPS 型全视角 TFT LCD 显示屏，分辨率为 QVGA 1024×600 像素。这是一款热销产品，深受客户欢迎。
产品详情：
1. LCD 尺寸：7 英寸 TFT
2. 分辨率：1024×600
3. 视角：自由
4. 外形尺寸：164.90×100.00×5.87 毫米
5. LCD 驱动器 IC：ILI6150C
6. LCD 接口类型：RGB
7. 温度：Top -20°C 至 +70°C；Tst -30°C 至 +80°C
8. 触摸面板：电容式触摸屏 (CTP)
规格参数
| Product: | 7″ Inch TFT LCD Touch |
| Resolution: | 1024×600 |
| LCM Interface: | RGB |
| LED Lifetime: | 40,000 Hours |
| Viewing Direction: | All |
| Operating Temp.: | –20℃ To +70℃ |
| Touch Screen: | Capacitive Touch Screen(CTP) |
| Cover Glass Dimension: | Optional For Customization |
| Surface Luminance: | 250 Cd/m2 |
| Pins: | 50 Pins |
| CTP Interface: | I2C |
| Compliance: | REACH & RoHS Compliant |

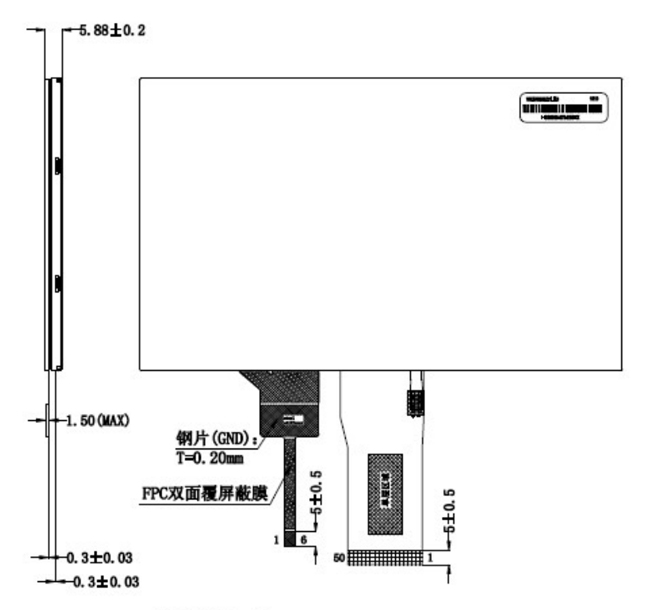

外形结构图
接口引脚定义
| Pin | Symbol | Function |
| 1~2 | A | Power supply for backlight |
| 3~4 | K | Backlight ground |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Input Enable |
| 10 | VS | Vertical Sync Input |
| 11 | HS | Horizontal Sync Input |
| 12-19 | B7 – B0 | Blue data(MSB) |
| 20-27 | G7 – G0 | Green data(MSB) |
| 28-35 | R7 – R0 | Red data(MSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin. |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49~50 | NC | No connection |
可靠性测试
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 | No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C (0.5 hour ¬ 5 min ® 0.5 hour) | 10cycles |
产品图像
