产品概述
SF-TC230T-9217C-N 是一款横向 2.3 英寸全彩 TFT-LCD 显示屏，分辨率为 320×240（水平 320 x 垂直 240 像素阵列）。表面亮度为 200 cd/m2（典型值），可提供出色的背光，对于需要更亮照明的应用，请联系我们的销售团队，因为表面亮度可以定制为 1000 cd/m2。SF-TC230T-9217C-N 在 -20℃ 至 +70℃ 的温度范围内有效运行，存储温度范围为 -30℃ 至 +80℃。
驱动 LCD 面板的电源电压 (VCC) 范围为 2.6V 至 3.3V，典型电压为 2.8V。它支持 8 位 MCU 接口，使其与各种嵌入式系统、自动化设置、GPS 设备、医疗设备、工业设备和安全设备兼容，这些设备需要高质量的 TFT 显示器来显示生动多彩的图像。
规格参数
| Product: | 2.3 Inch TFT LCD Panel |
| Resolution: | 320×240 Pixels |
| Viewing Direction: | 6:00 |
| Touch Screen: | Without Resistive Touch Screen (Optional) |
| Interface: | MCU 8 Bits |
| Pin Number: | 36 Pins |
| Connection: | Soldering |
| Surface Luminance: | 250 Cd/m2 (Customizable) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

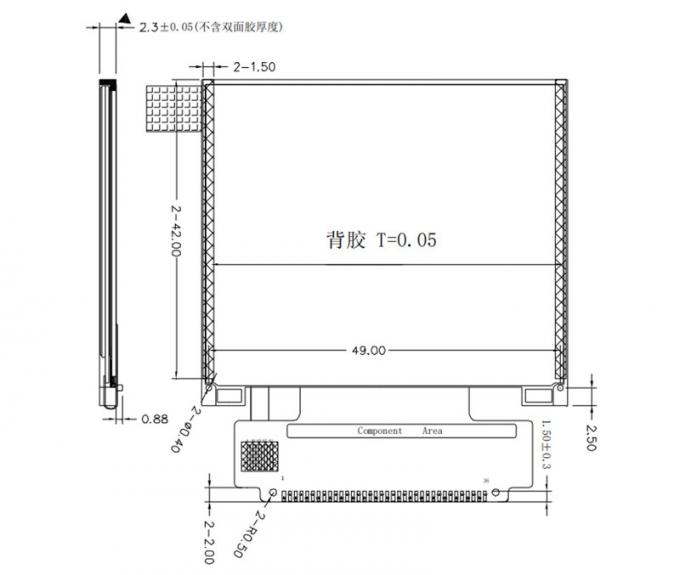

外形结构图
接口引脚定义
| NO. | PIN NAME | I/O | Description |
| 1 | LED_A | O | LED Anode |
| 2 | LED_K4 | O | LED Cathode |
| 3 | LED_K3 | O | LED Cathode |
| 4 | LED_K2 | O | LED Cathode |
| 5 | LED_K1 | O | LED Cathode |
| 6 | GND | I | Ground |
| 7 | /RESET | I | LCM Reset input signal |
| 8-23 | DB15-DB0 | I | Display Data I/O |
| 24 | W16_8X | I | W16_8X:Connect to GND is 8080-MPU，8Bit Interface：DB0-DB7; W16_8X:Connect to IOVCC is 8080-MPU，16Bit Interface：DB0-DB15; |
| 25 | /RD | I | Read strobe signal input pin |
| 26 | /WR | I | Write strobe signal input pin |
| 27 | RS | I | Register select signal |
| 28 | /CS | I | Input pin for chip selection signal |
| 29 | IOVCC | I | Power Supply1.8 V/2.8V Voltage |
| 30 | VCC | I | Power Supply2.8V Voltage |
| 31 | VCI | I | Power Supply2.8V Voltage |
| 32 | GND | I | Ground |
| 33 | NC | – | Set Open |
| 34 | NC | – | Set Open |
| 35 | NC | – | Set Open |
| 36 | NC | – | Set Open |
最大绝对限度
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
直流特性 (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
背光电光特性
| Item | Symbol | MIN | TYP | MAX | UNIT | Condition | Note |
| Supply Voltage | Vf | 3 | 3.2 | 3.4 | V | If=60 mA | – |
| Supply Current | If | – | 15 | – | mA | – | – |
| Reverse Voltage | Vr | – | – | 5 | V | – | |
| Power dissipation | Pd | – | 288 | – | mW | – | |
| Luminous Intensity for LCM | – | – | 250 | – | Cd/m2 | If=60mA | – |
| Uniformity for LCM | – | 80 | – | – | ％ | If=60 mA | – |
| Backlight Color | White | ||||||
产品图片
