产品概述
SF-TC430S-8671A-T 是一款 4.3 英寸全 TFT-LCD 显示屏，分辨率为 480×800（水平 480 像素，垂直 800 像素）。LCD 面板的电源电压 (VCC) 范围为 2.6V 至 3.3V，典型电压为 2.8V，并支持 MIPI 接口。该显示屏适用于各种应用，包括嵌入式系统、自动化、GPS、医疗设备、工业设备和安全设备，这些应用需要高质量和丰富多彩的图像显示。
SF-TC430S-8671A-T 采用 IPS-LCD 型 TFT，亮度为 200 cd/m2（典型值）。对于需要更亮背光的应用，请联系我们的销售团队，因为表面亮度可以定制到 1000 cd/m2。
SF-TC430S-8671A-T 的工作温度范围为 -20℃ 至 +70℃，可承受各种环境条件。此外，其存储温度范围为 -30℃ 至 +80℃，确保存储的耐用性和可靠性。
规格参数
| Product: | 4.3 Inch IPS TFT LCD |
| Resolution: | 480×800 Pixels |
| Interface: | MIPI Interface |
| Viewing Direction: | All Viewing Angles (IPS) |
| Touch Screen: | With Resistive Touch Screen (Optional) |
| Pin Number: | 45 Pins |
| Connection: | Plugging |
| Surface Luminance: | 200 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

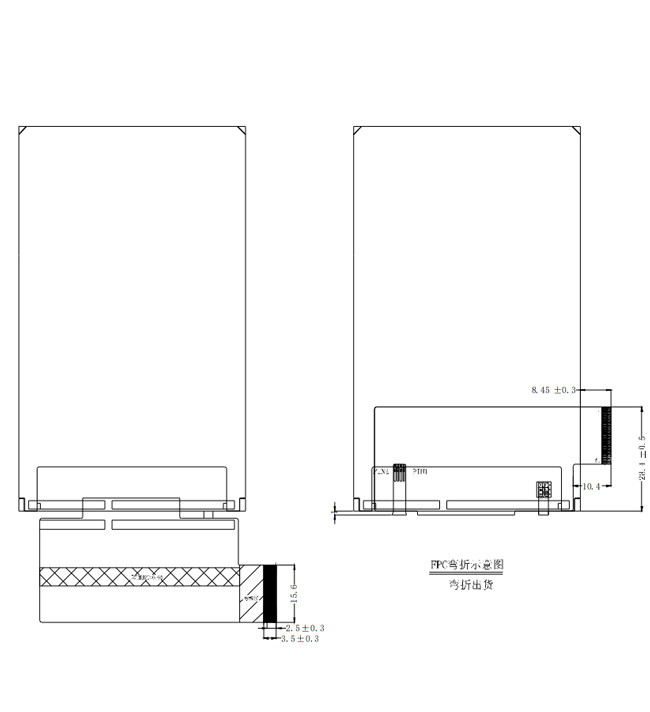

产品图纸
接口引脚定义
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | CN | I/O | DSI-CLK-clock signals |
| 3 | CP | I/O | DSI-CLK+clock signals |
| 4 | GND | I | Ground |
| 5 | D0N | I/O | DSI-D0-clock signals |
| 6 | D0P | I/O | DSI-D0+clock signals |
| 7 | GND | I | Ground |
| 8 | D1P | I/O | DSI-D1+clock signals |
| 9 | D1N | I/O | DSI-D1-clock signals |
| 10 | GND | I | Ground |
| 11 | RESET | I | LCM Reset input signal |
| 12 | TE | I | Tearing effect output |
| 13 | VCI | I | Power Supply 2.8V |
| 14 | IOVCC | I | Power Supply 1.8V-2.8V |
| 15 | GND | I | Ground |
| 16 | A | O | LED + |
| 17 | K | O | LED – |
| 18 | GND | I | Ground |
| 19 | YU | I | Touch Panel Pin |
| 20 | XL | I | Touch Panel Pin |
| 21 | YD | I | Touch Panel Pin |
| 22 | XR | I | Touch Panel Pin |
| 23 | GND | I | Ground |
| 24-51 | NC | I | – |
直流特性 (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
背光电光特性
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition | Note |
| Supply Voltage | Vf | – | 25.6 | – | V | If=20 mA | – |
| Supply Current | If | – | 20 | – | mA | – | – |
| Reverse Voltage | Vr | – | – | 5 | V | – | |
| Power dissipation | Pd | – | – | – | mW | – | |
| Luminous Intensity for LCM | – | – | 200 | – | Cd/m2 | If=20mA | – |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA | – |
| LED life time | Hr | 50000 | – | – | Hour | – | – |
| Backlight Color | White | ||||||
